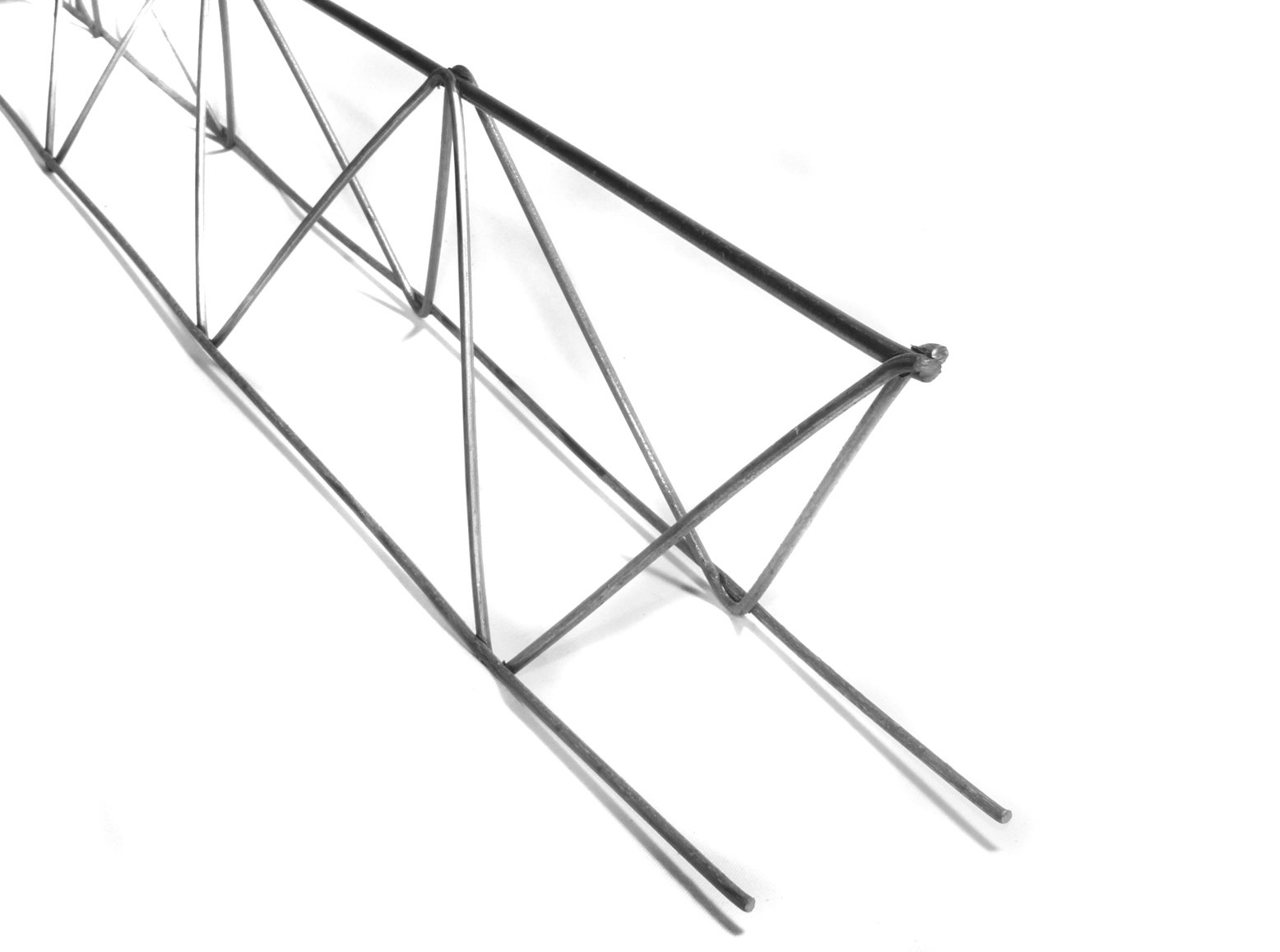

Lattice Girder

Lattice Girders are used primarily in wide slab and double wall precast applications. They can also be used as horizontal reinforcement in slabs. Any combination of bars can be manufactured to order.

Slide title

Write your caption here

Button

Height	Length	7-4.5-5	8-5-5	8-6-6	10-6-6	12-6-6
(mm)	(mtr)	Pack Size (no)	Pack Size (no)	Pack Size (no)	Pack Size (no)	Pack Size (no)
50	12	50
60	12	50
70	12	100	100	100	50	50
80	12	100	100	100	50	50
90	12	100	100	100	50	50
100	12	100	100	100	50	50
110	12	100	100	100	50	50
120	12	100	100	100	50	50
130	12	100	100	100	50	50
140	12	100	100	100	50	50
150	12	100	100	100	50	50
160	12	100	100	100	50	50
170	12	100	100	100	50	50
180	12	50	50	50	50	50
190	12	50	50	50	50	50
200	12	50	50	50	50	50
210	12		50	50	50	50
220	12		50	50	50	50
230	12		50	50	50	50
240	12		50	50	50	50
250	12		50	50	50	50
260	12		50	50	50	50
270	12		50	50	50	50
280	12		50	50	50	50
290	12		50	50	50	50
300	12		50	50	50	50
310	12				25
320	12				25
