High Chairs - BS7973

High Chairs - BS7973

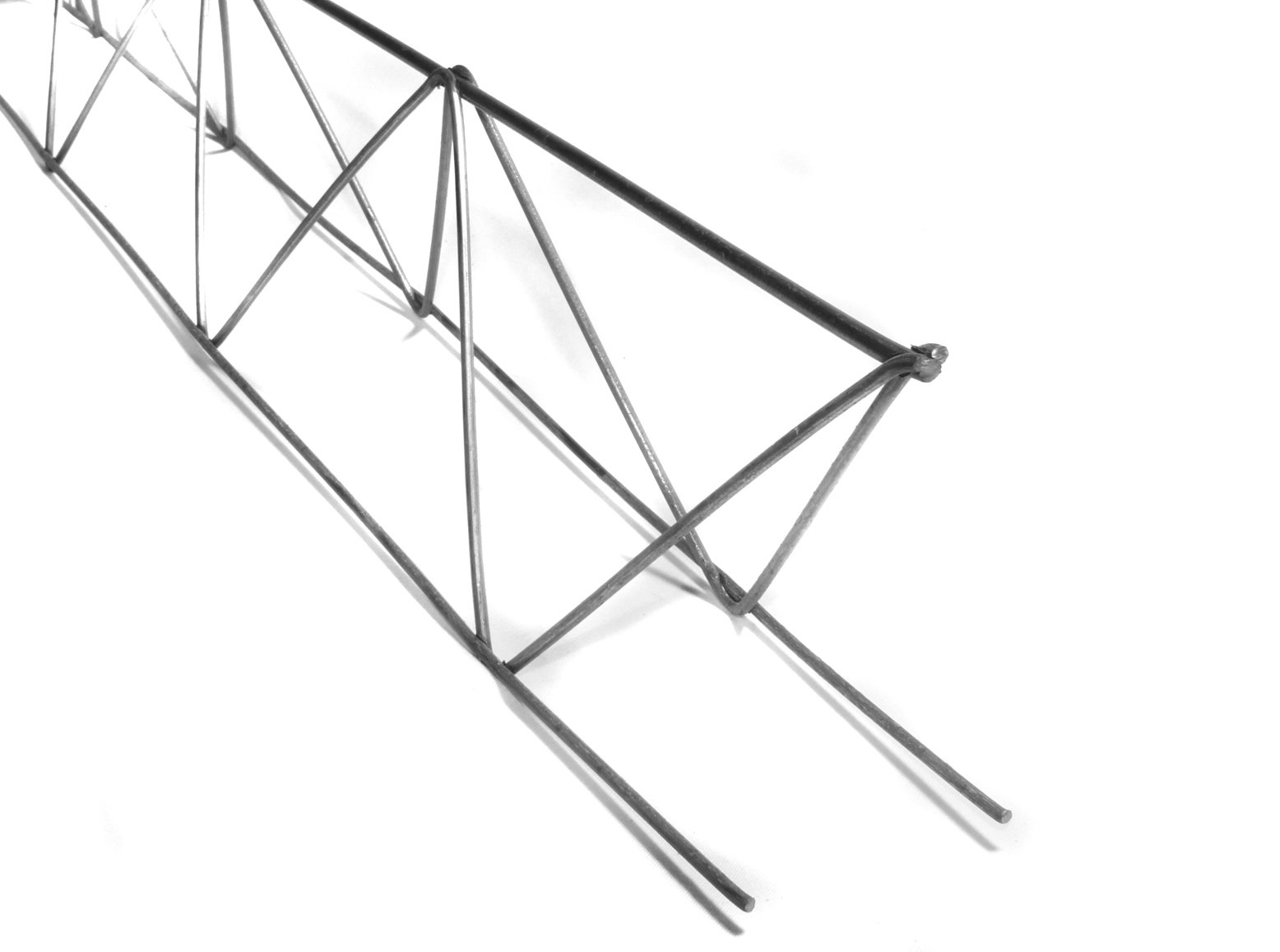

A robust continuous wire chair manufactured from Grade B500 reinforcement steel incorporating larger diameter bars than our standard High Chairs. This product has been specifically designed and manufactured to meet the exact performance standards of BS7973. The standard stipulates that the permanent deflection of the product should not exceed 1.0mm after a set load is applied to the various points along the length of the chair. Meeting this specification reduces the chance of deformation of the wire chair during installation, reducing the potential for increases in concrete cover to the reinforcement, which in turn could lead to larger crack widths than anticipated in the finished concrete surface. This product feature should be considered when supporting the reinforcement steel for heavily reinforced slabs or when large amounts of foot traffic are anticipated either while fixing the reinforcement steel or during final concrete placement.
Manufactured in accordance with BS7973-1 :2001.
Approved according to DBV specification.
Product Code Height (mm) Top Bar (mm) Stirrup (mm) Bottom Bar (mm) Length (mtr) Weight (kg/mtr) Pack Size (mtr)
A050BS 50 5.0 4.0 5.0 2 0.874 500
A060BS 60 5.0 4.0 5.0 2 0.891 500
A075BS 75 5.0 4.0 5.0 2 0.920 500
A090BS 90 5.0 4.0 5.0 2 0.953 500
A105BS 105 5.0 4.0 5.0 2 0.989 500
A120BS 120 5.0 4.0 5.0 2 1.028 500
A135BS 135 5.0 4.0 5.0 2 1.068 500
A150BS 150 5.0 4.0 5.0 2 1.110 500
A165BS 165 5.0 4.0 5.0 2 1.153 500
A180BS 180 5.0 4.0 5.0 2 1.197 500
A200BS 200 5.0 4.0 5.0 2 1.257 500
A220BS 220 5.0 4.0 5.0 2 1.317 200
A230BS 230 5.0 4.0 5.0 2 1.348 200
A250BS 250 5.0 4.0 5.0 2 1.410 200
A270BS 270 5.0 4.0 5.0 2 1.472 200
A280BS 280 5.0 4.0 5.0 2 1.503 200
A300BS 300 5.0 4.0 5.0 2 1.566 200
  • Data Sheet

    Data Sheet (Download)

  • BS7973-1 :2001 Certificate

    BS7973-1 :2001 Certificate (Download)

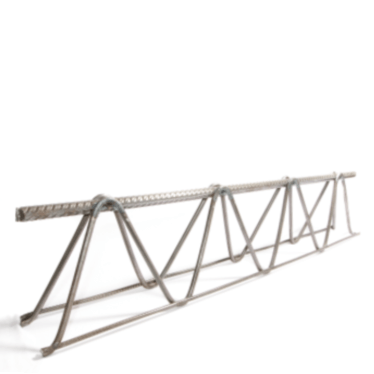

Alternatives
