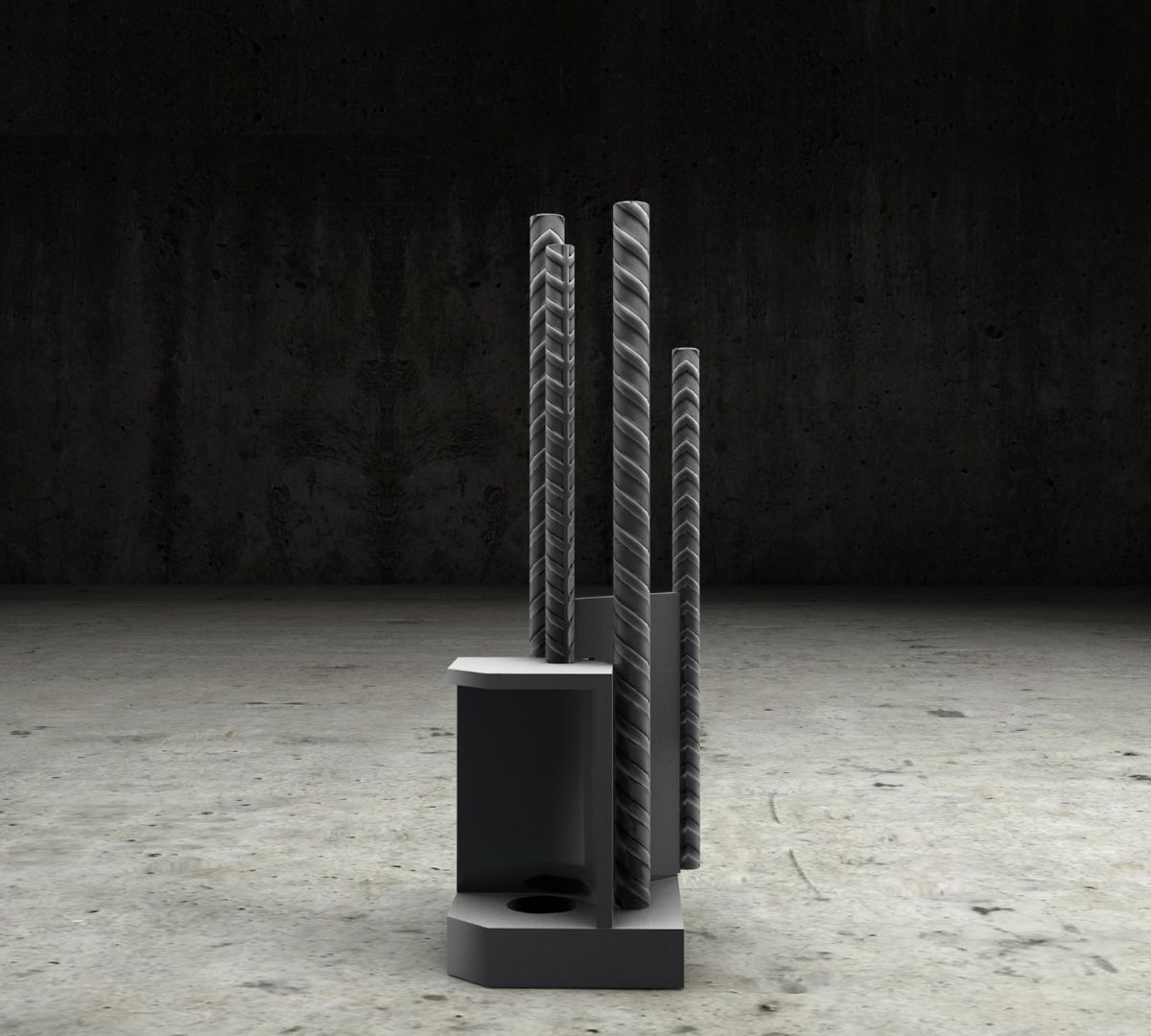

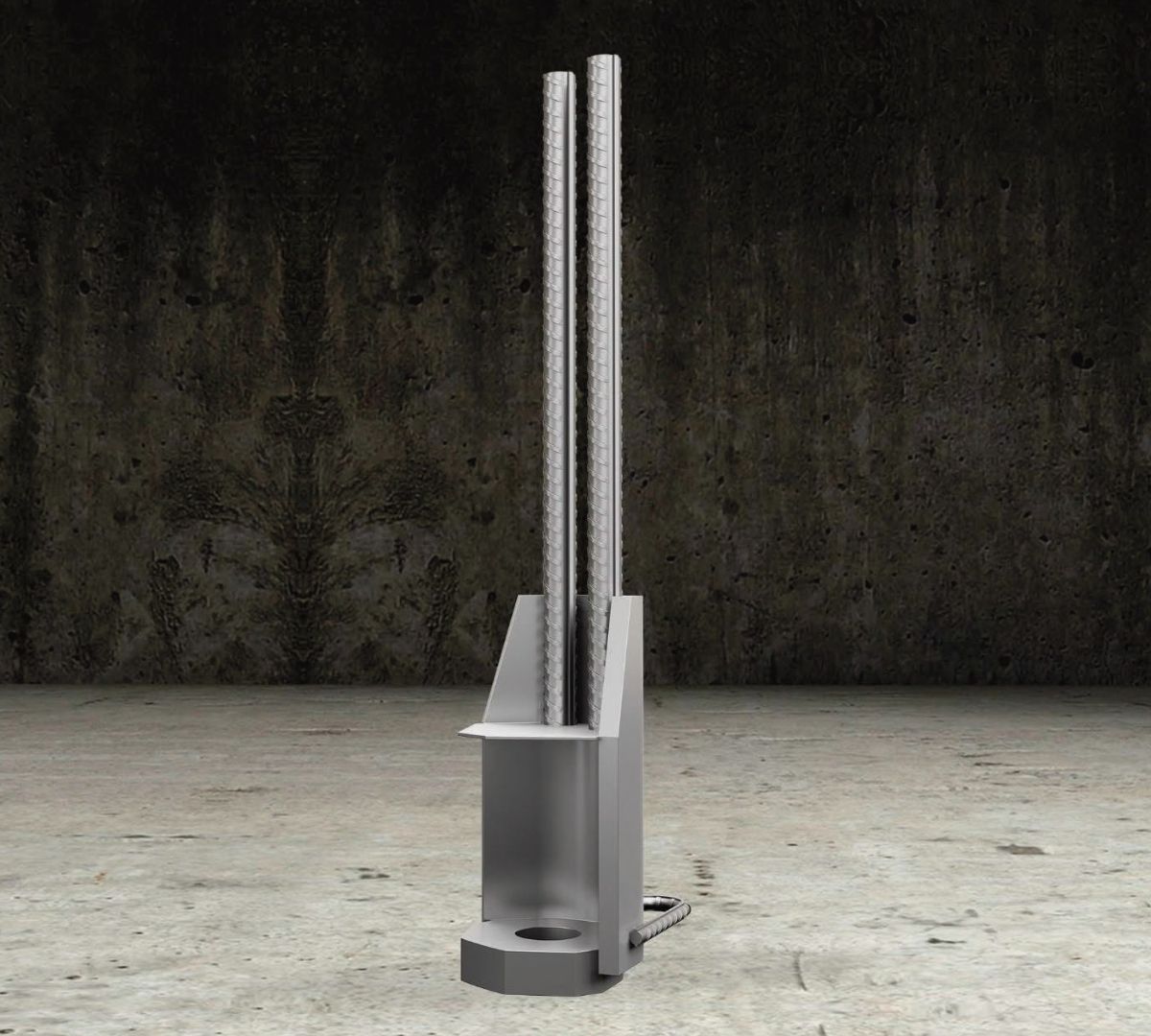

Column Shoes are used as a safe and fast solution to connect precast concrete columns
and foundations or between two precast concrete columns.
Product Code | Bolt (M) | Shoe Size (mm) | Bar Size (mm) | Bars (no) |
---|---|---|---|---|
CS1602 | 16 | L.80 x W.80 x H.102 | 12 x 597 | 2 |
CS2002 | 20 | L.83 x W.83 x H.100 | 16 x 820 | 2 |
CS2402 | 24 | L.90 x W.90 x H.125 | 16 x 1185 | 2 |
CS3002 | 30 | L.95 x W.95 x H.140 | 20 x 1390 | 2 |
CS3902 | 39 | L.120 x W.120 x H.220 | 25 x 1910 | 2 |
CS3003 | 30 | L.105 x W.105 x H.200 | 20 x 1340 | 3 |
CS3603 | 36 | L.118 x W.118 x H.190 | 25 x 1585 | 3 |
CS3906 | 39 | L.125 x W.125 x H.225 | 25 x 1915 | 3 |
CS4503 | 45 | L.148 x W.148 x H.290 | 32 x 2090 | 3 |
CS5203 | 52 | L.148 x W.148 x H.395 | 32 x 2815 | 3 |
Data Sheet (Available upon request)
