Square Column Formers
Square Column Formers
Lined BAG Column Formers are fitted with a PVC internal liner running the entire length of the column tube, providing a smooth blemish free surface. Lined Column Formers will only leave a hairline seam on the surface of the finished column corresponding to the joint line of the formwork lining material.
Unlined BAG Column Formers are ideal for applications where surface finish is not critical. They leave a spiral joint line on the surface of the finished concrete.
| Internal Dimensions (mm) | Tube OD (mm) | Maximum Pour Rate (m/hr) | Concrete Required (m3/mtr) | Weight (kg/mtr) |
|---|---|---|---|---|
| 200 x 200 | 300 | 4.5 | 0.040 | 3.1 |
| 240 x 240 | 360 | 4.5 | 0.057 | 3.9 |
| 250 x 250 | 374 | 3.8 | 0.062 | 4.0 |
| 300 x 300 | 458 | 3.4 | 0.090 | 5.2 |
| 350 x 350 | 514 | 3.0 | 0.122 | 6.0 |
| 400 x 400 | 586 | 2.6 | 0.160 | 7.6 |
| 450 x 450 | 666 | 2.3 | 0.202 | 8.7 |
| 500 x 500 | 736 | 2.3 | 0.250 | 9.8 |
Associated Products
Associated Products
-
![]()

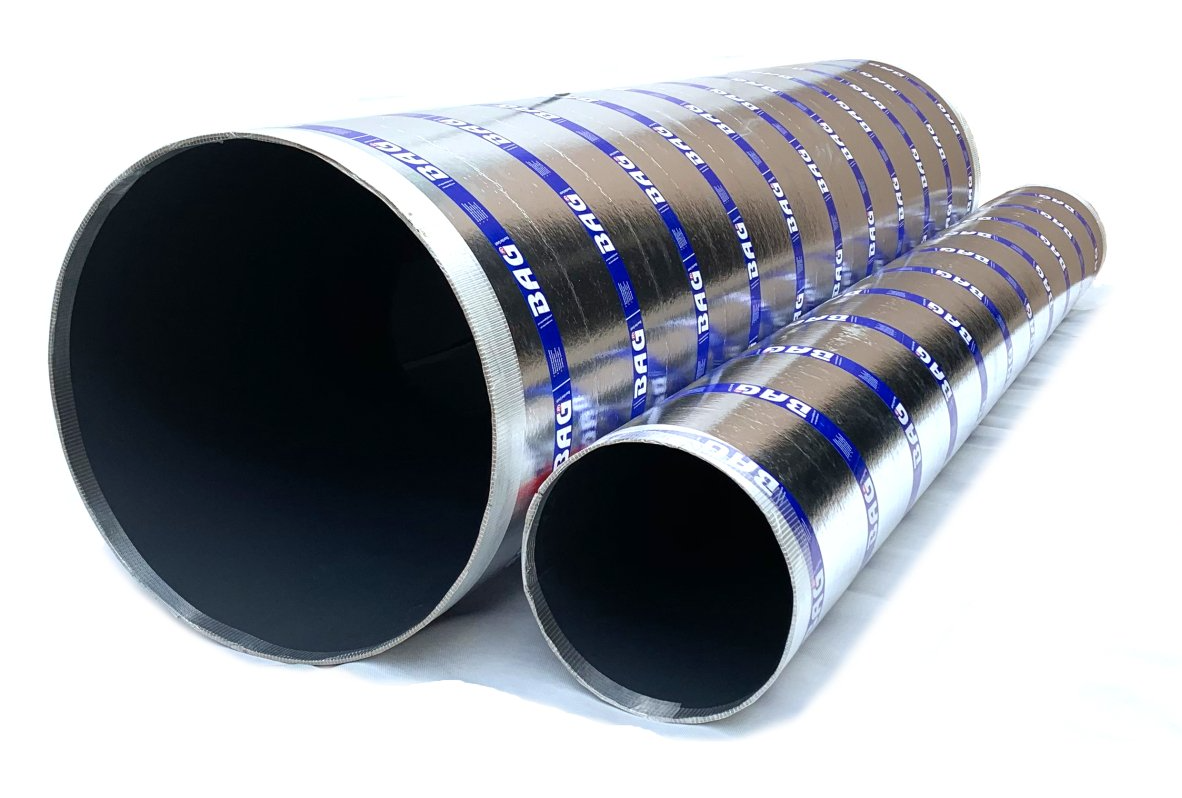

ButtonCircular Column Formers
-
![]()
-
![]()
