Cast-in Channel Serrated Wall Ties
Serrated Wall Ties
Used in conjunction with Cast-in Channel and serrated square washers these ties are ideal for securing vertical precast elements at a set distance from in situation cast concrete with a non-slip connection. They can be used as a channel to channel connection or channel to threaded insert or threaded rod connection.
Cast-in Channel 28/15
| Product Code (Galvanised) | Profile | Projection (mm) | Length (mm) | Slotted Hole (mm) | Tensile Load all. F (Kn) |
|---|---|---|---|---|---|
| CICWT281550 | 28/15 | 50 | 90 | 11 x 55 | 3.5 |
| CICWT281575 | 28/15 | 75 | 115 | 11 x 55 | 3.5 |
| CICWT2815100 | 28/15 | 100 | 140 | 11 x 55 | 3.5 |
| CICWT2815125 | 28/15 | 125 | 165 | 11 x 55 | 3.5 |
| CICWT2815150 | 28/15 | 150 | 190 | 11 x 55 | 3.5 |
| CICWT2815175 | 28/15 | 175 | 215 | 11 x 55 | 3.5 |
| CICWT2815200 | 28/15 | 200 | 240 | 11 x 55 | 3.5 |
Cast-in Channel 38/17
| Product Code (Galvanised) | Profile | Projection (mm) | Length (mm) | Slotted Hole (mm) | Tensile Load all. F (Kn) |
|---|---|---|---|---|---|
| CICWT381775 | 38/17 | 75 | 115 | 13 x 55 | 7.0 |
| CICWT3817100 | 38/17 | 100 | 140 | 13 x 55 | 7.0 |
| CICWT3817125 | 38/17 | 125 | 165 | 13 x 55 | 7.0 |
| CICWT3817150 | 38/17 | 150 | 190 | 13 x 55 | 7.0 |
| CICWT3817175 | 38/17 | 175 | 215 | 13 x 55 | 7.0 |
| CICWT3817200 | 38/17 | 200 | 240 | 13 x 55 | 7.0 |
Associated Products
Associated Products
-

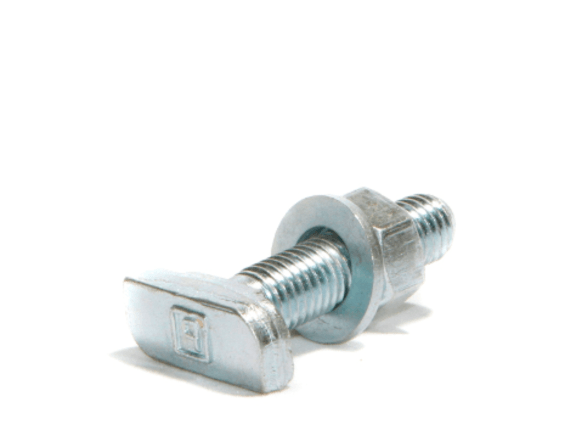

![T-Bolts]()
-
![Serrated Wall Tie]()

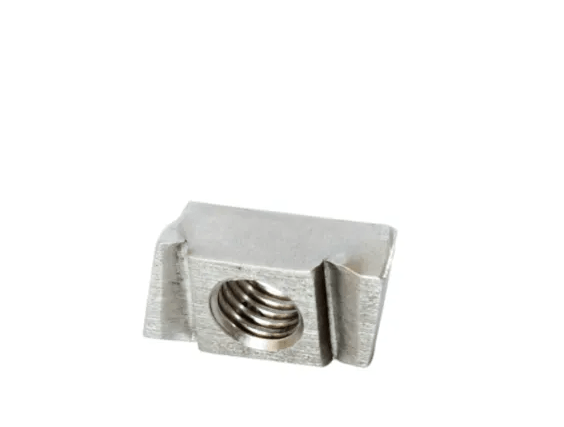

ButtonCaptive Nuts
-

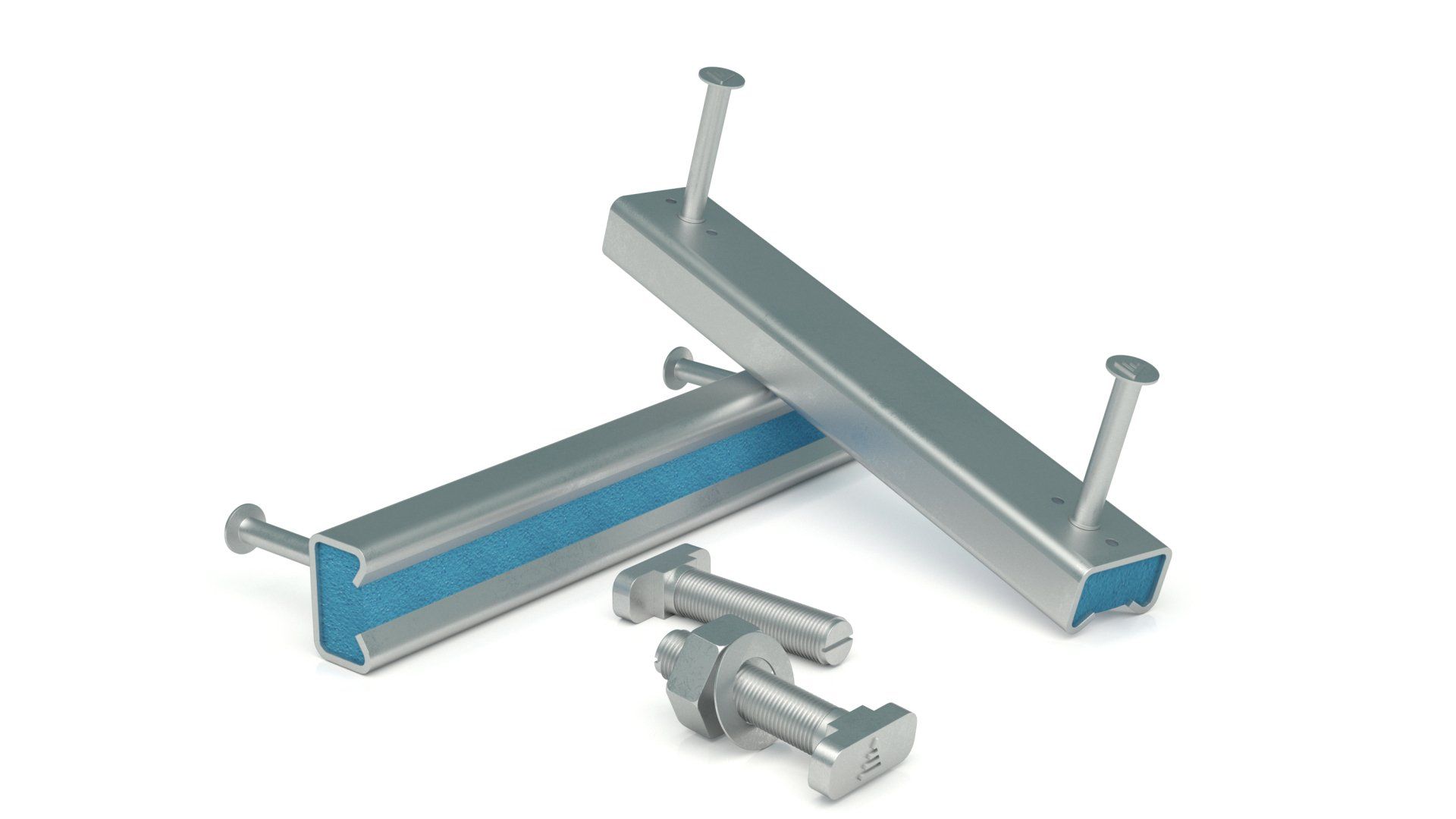

![Cast-in Channel]()
