Cast-in Channel Captive Nuts
Captive Nuts
Captive Nuts are used with Cast-in Channel, theses threaded inserts allow flexible positioning of fixing points along the channel length. Their parallelogram shape means the nuts can be inserted into the channel after the concrete has cured.
Profiles: 28/15 & 38/17
| Product Code | Size (M) | Head Thickness (mm) | Head Width (mm) | Head Length (mm) | Suitable Profiles |
|---|---|---|---|---|---|
| CICLN28156 | 6 | 4 | 13 | 24.5 | 28/15 |
| CICLN28158 | 8 | 4 | 13 | 24.5 | 28/15 |
| CICLN251810 | 10 | 4 | 13 | 24.5 | 28/15 |
| CICLN381710 | 10 | 6 | 17.5 | 31.5 | 38/17 |
| CICLN381712 | 12 | 6 | 17.5 | 31.5 | 38/17 |
| CICLN381716 | 16 | 6 | 17.5 | 31.5 | 38/17 |
Profiles: 40/25, 49/30, 54/33 & 72/49
| Product Code | Size (M) | Head Thickness (mm) | Head Width (mm) | Head Length (mm) | Suitable Profiles |
|---|---|---|---|---|---|
| CICLN402510 | 10 | 10.8 | 17 | 34.5 | 40/25 |
| CICLN402512 | 12 | 10.8 | 17 | 34.5 | 40/25 |
| CICLN402516 | 16 | 10.8 | 17 | 34.5 | 40/25 |
| CICLN493010 | 10 | 11.7 | 21 | 43.5 | 49/30 &?54/33 |
| CICLN493012 | 12 | 11.7 | 21 | 43.5 | 49/30 &?54/33 |
| CICLN493016 | 16 | 11.7 | 21 | 43.5 | 49/30 &?54/33 |
| CICLN724912 | 12 | 22 | 31 | 62 | 72/49 |
| CICLN724916 | 16 | 22 | 31 | 62 | 72/49 |
| CICLN724920 | 20 | 22 | 31 | 62 | 72/49 |
Associated Products
Associated Products
-

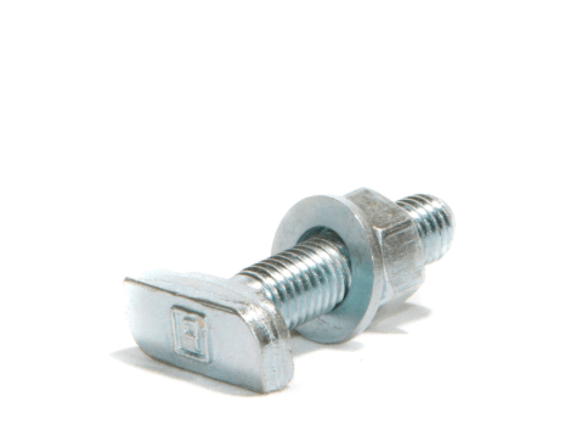

![T-Bolts]()
-

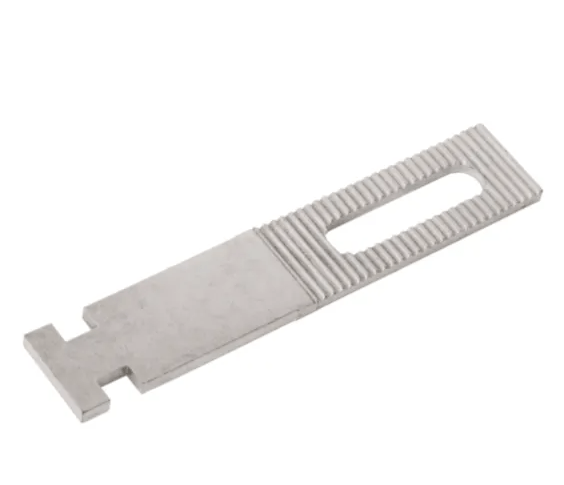

![Serrated Wall Tie]()
ButtonSerrated Wall Tie
-

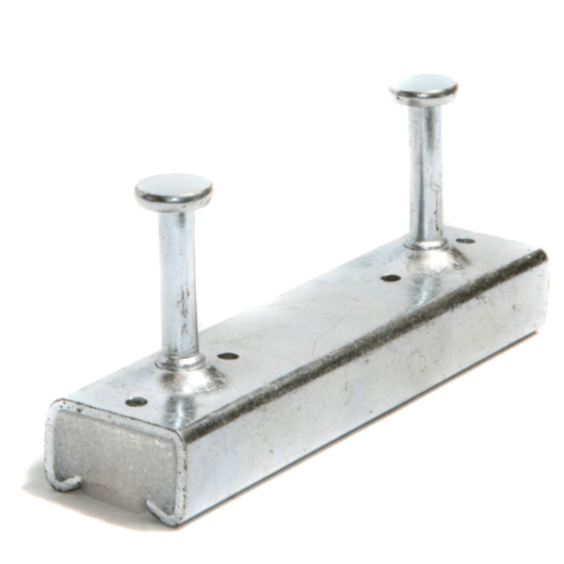

![Cast-in Channel]()
