Spread Anchor Magnetic Rubber Formers
Spread Anchor Magnetic Rubber Formers
The Spread Anchor Magnetic Rubber Former is designed for use on steel moulds. They hold the Spread Anchor in position and leave a recess for the Ring Clutch.
| Product Code | Load Group (kg) | Width (mm) | Length (mm) | Height (mm) |
|---|---|---|---|---|
| LASRFM025 | 700 - 2500 | 43 | 104 | 45 |
| LASRFM050 | 3000 - 5000 | 49 | 126 | 59 |
| LASRFM100 | 7500 - 10000 | 67 | 188 | 85 |
Associated Products
Associated Products
-

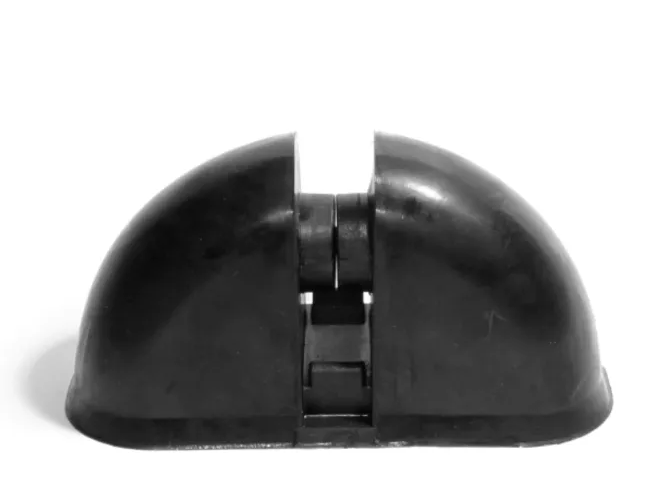

![Spread Anchor Rubber Former]()
ButtonSpread Anchor Rubber Former
-

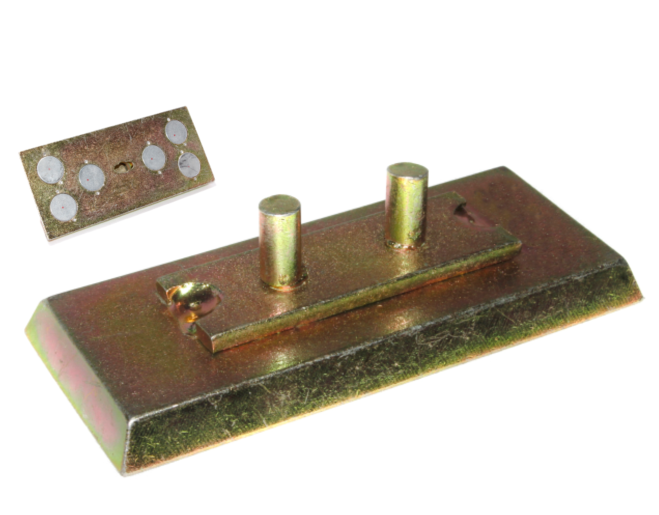

![Spread Anolding Magnetic Holding Plate]()
-

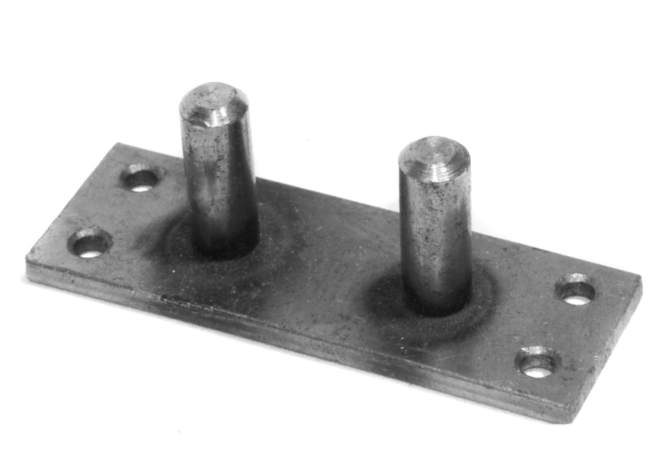

![Hex Set Screw]()
-

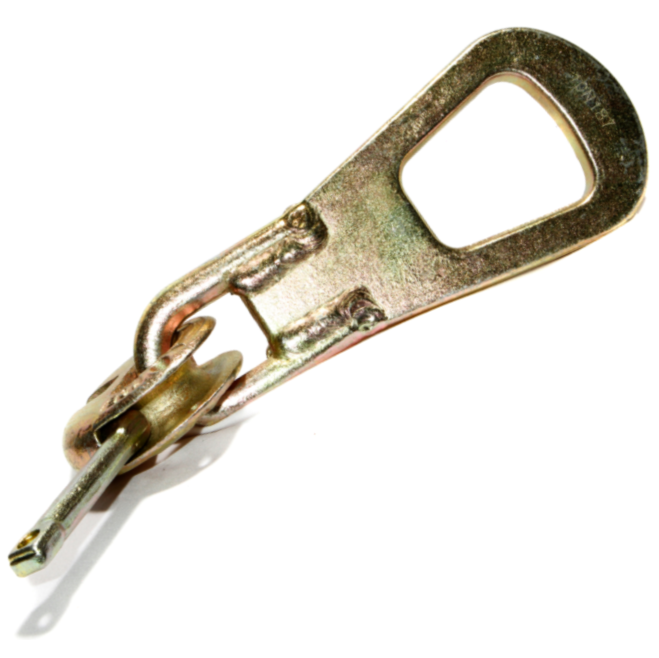

![Spread Anchor Ring Clutch]()
