Speed Edge Formwork

Speed Edge Formwork

Speed Edge Formwork is constructed from galvanized steel sheets, designed for use in base and floor slabs. It is offered in a standard length of 2.25 metres and heights ranging from 150mm to 500mm.
Product Code Height (mm) Base (mm) Stirrup (qty) Thickness (mm) Length (mtr)
SEF150 150 100 5 0.7 2.25
SEF160 160 100 5 0.7 2.25
SEF200 200 120 6 0.7 2.25
SEF250 250 150 6 0.7 2.25
SEF300 300 180 7 0.7 2.25
SEF350 350 210 7 1.2 2.25
SEF400 400 240 8 1.2 2.25
SEF450 450 270 9 1.2 2.25
SEF500 500 300 10 1.2 2.25
SEF600 600 360 10 1.2 2.25

Benefits

  • Self-supporting design for heights up to 500mm

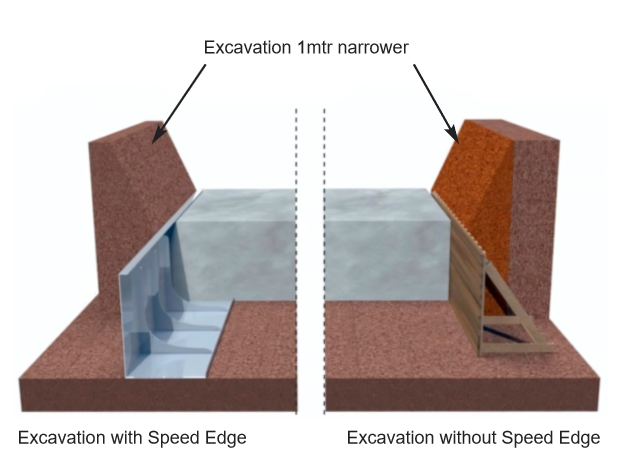

  • Reduces excavation requirements and speeds up assembly
  • Corners can be easily shaped with simple bending techniques
  • Ideal for creating intricate slab designs with minimal effort
  • No need for stripping after installation
  • Can be installed without requiring heavy machinery like cranes

Installation

Step 1

Fixing

Installation of SEF on the ground. (If SEF is being installed on bedding concrete, nails should be used instead of hooks).

Step 3

Corners

Create corners by cutting the sheet metal base and bending the unit on site.

Step 2

Joining

Joints are installed by simply pushing together the units with 3-4 cm overlap.



Step 4

Pouring

Concreting of foundation slab.
