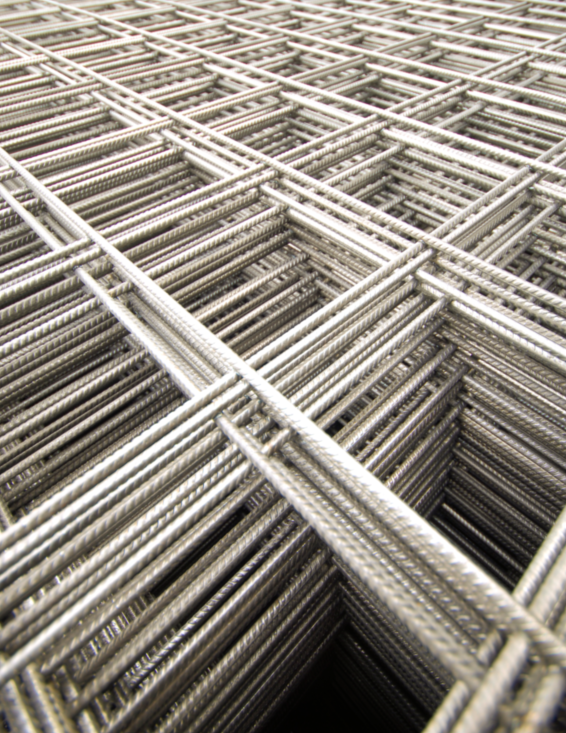

Reinforcing Mesh
Reinforcing Mesh
Van Merksteijn provides all the UK standard mesh sizes to Cares approval.
Square Mesh
| Type | Main Reinforcement Centres & Bar Dia. (mm) | Cross Reinforcement Centres & Bar Dia. (mm) | Sheet Size (mm) | Sheet Weight (kg) | Pack Size (no) | Pack Weight (kg) |
|---|---|---|---|---|---|---|
| A-142 | 200/6.0 | 200/6.0 | 4800 x 2400 | 25.57 | 46 | 46 |
| A193 | 200/7.0 | 200/7.0 | 4800 x 2400 | 34.78 | 34 | 34 |
| A-252 | 200/8.0 | 200/8.0 | 4800 x 2400 | 45.50 | 28 | 28 |
| A-393 | 200/10.0 | 200/10.0 | 4800 x 2400 | 71.10 | 18 | 18 |
Structural Mesh
| Type | Main Reinforcement Centres & Bar Dia. (mm) | Cross Reinforcement Centres & Bar Dia. (mm) | Sheet Size (mm) | Sheet Weight (kg) | Pack Size (no) | Pack Weight (kg) |
|---|---|---|---|---|---|---|
| B-283 | 100/6.0 | 200/7.0 | 4800 x 2400 | 42.97 | 30 | 1289.10 |
| B-385 | 100/7.0 | 200/7.0 | 4800 x 2400 | 52.19 | 24 | 1252.56 |
| B-503 | 100/8.0 | 200/8.0 | 4800 x 2400 | 68.31 | 18 | 1229.58 |
| B-785 | 100/10.0 | 200/8.0 | 4800 x 2400 | 93.75 | 14 | 1312.50 |
| B-1131 | 100/12.0 | 200/8.0 | 4800 x 2400 | 125.10 | 10 | 1251.00 |
Flying End Mesh
| Type | Main Reinforcement Centres & Bar Dia. (mm) | Cross Reinforcement Centres & Bar Dia. (mm) | Sheet Size (mm) | Sheet Weight (kg) | Pack Size (no) | Pack Weight (kg) |
|---|---|---|---|---|---|---|
| A-142-FE | 200/6.0 | 200/6.0 | 4800 x 2400 | 22.00 | 46 | 1012.00 |
| A-193-FE | 200/7.0 | 200/7.0 | 4800 x 2400 | 30.44 | 34 | 1034.96 |
| A-252-FE | 200/8.0 | 200/8.0 | 4800 x 2400 | 39.82 | 28 | 1114.96 |
| A-393-FE | 200/10.0 | 200/10.0 | 4800 x 2400 | 62.19 | 18 | 1119.42 |
Eco Mesh
| Type | Main Reinforcement Centres & Bar Dia. (mm) | Cross Reinforcement Centres & Bar Dia. (mm) | Sheet Size (mm) | Sheet Weight (kg) | Pack Size (no) | Pack Weight (kg) |
|---|---|---|---|---|---|---|
| A-142-EC | 200/6.0 | 200/6.0 | 4800 x 2400 | 23.98 | 46 | 1103.08 |
| A-193-EC | 200/7.0 | 200/7.0 | 4800 x 2400 | 32.62 | 34 | 1109.08 |
| A-252-EC | 200/8.0 | 200/8.0 | 4800 x 2400 | 42.66 | 28 | 1194.48 |
| A-393-EC | 200/10.0 | 200/10.0 | 4800 x 2400 | 66.64 | 18 | 1199.52 |
Merchant Mesh
| Type | Main Reinforcement Centres & Bar Dia. (mm) | Cross Reinforcement Centres & Bar Dia. (mm) | Sheet Size (mm) | Sheet Weight (kg) | Pack Size (no) | Pack Weight (kg) |
|---|---|---|---|---|---|---|
| A-142-M | 200/6.0 | 200/6.0 | 3600 x 2000 | 15.98 | 50 | 799.00 |
| A-193-M | 200/7.0 | 200/7.0 | 3600 x 2000 | 21.74 | 34 | 739.16 |
| A-252-M | 200/8.0 | 200/8.0 | 3600 x 2000 | 28.44 | 28 | 796.32 |
| A-393-M | 200/10.0 | 200/10.0 | 3600 x 2000 | 44.42 | 18 | 799.56 |
Associated Products
Associated Products
-
![Reinforcing Coil]()
ButtonReinforcing Coil
-
![Coil Clamps]()
-

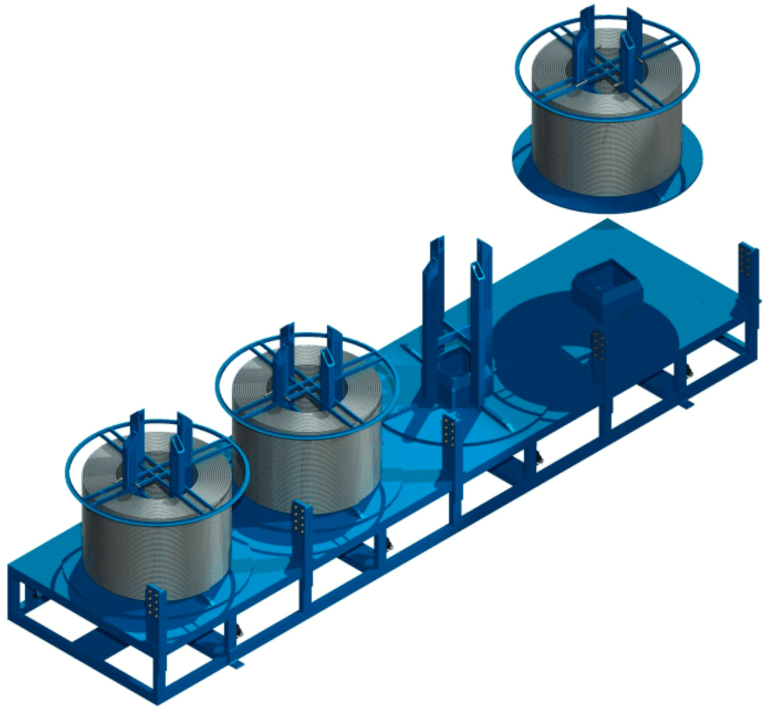

![Coil Pay Off Systems]()
