Minimal Contact End Caps
Minimal Contact End Caps
Minimal Contact End Caps are used to provide the correct concrete cover to the ends of the reinforcement steel, eliminating the possibility of surface staining.
| Product Code | Cover (mm) | Bar Dia. (mm) | Pack Size |
|---|---|---|---|
| ECM100408 | 10 | 4-8 | 1000 |
| ECM150408 | 15 | 4-8 | 1000 |
| ECM150811 | 15 | 8-11 | 500 |
| ECM200408 | 20 | 4-8 | 500 |
| ECM200811 | 20 | 8-11 | 500 |
| ECM201924 | 20 | 19-24 | 250 |
| ECM250408 | 25 | 4-8 | 1000 |
| ECM250811 | 25 | 8-11 | 500 |
| ECM300408 | 30 | 4-8 | 1000 |
| ECM300811 | 30 | 8-11 | 500 |
| ECM301924 | 30 | 19-24 | 250 |
| ECM350408 | 35 | 4-8 | 1000 |
| ECM350811 | 35 | 8-11 | 500 |
| ECM400811 | 40 | 8-11 | 500 |
| ECM450408 | 45 | 4-8 | 1000 |
| ECM450811 | 45 | 8-11 | 500 |
| ECM451216 | 45 | 12-16 | 500 |
Associated Products
Associated Products
-

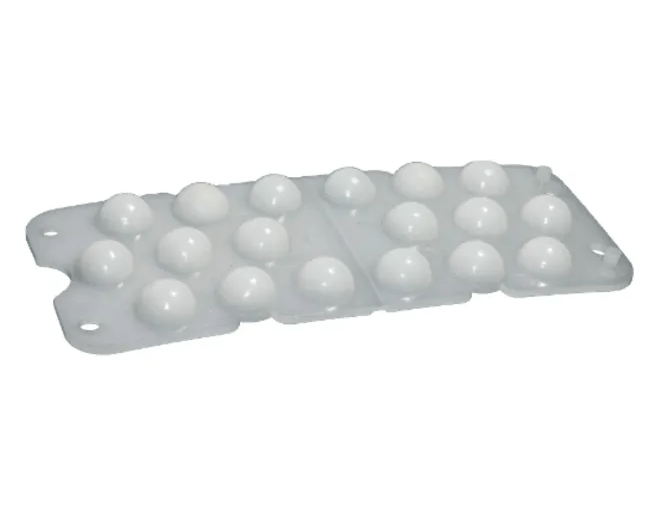

![Panel Pads]()
ButtonPanel Pads
-

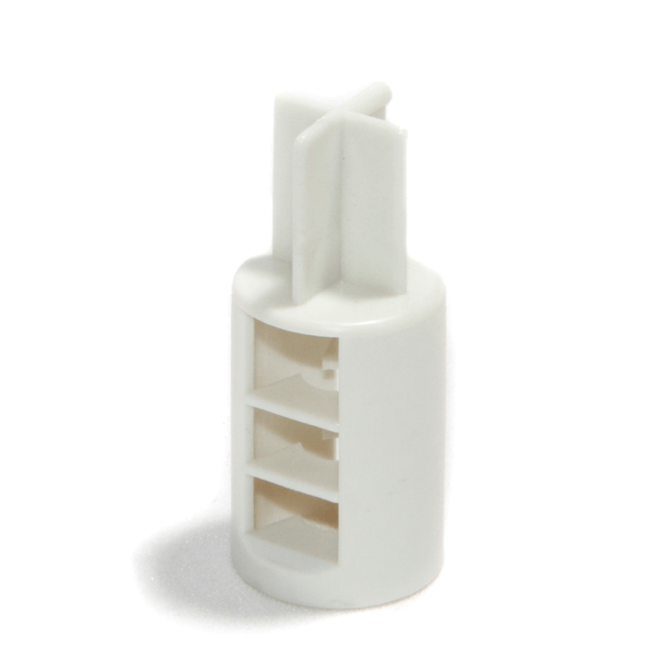

![Standard Panel Pads]()
-

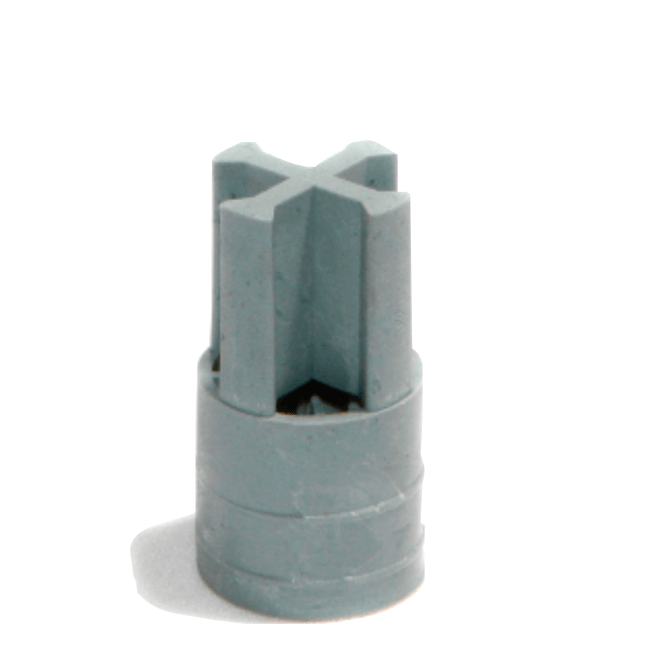

![Heavy Duty End Caps]()
-
