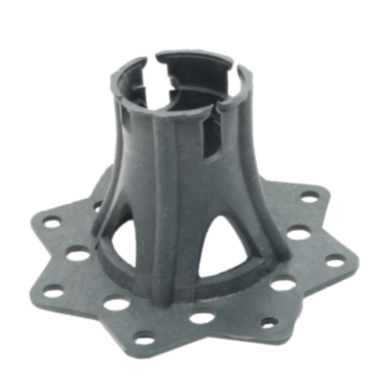

Heavy Duty Flat Base Clip-On
Heavy Duty Flat Base Clip-On
A very stable heavy duty mesh spacer capable of withstanding vertical loads of 100kg. The wide base distributes the load of the reinforcing mesh over a large area, preventing accidental perforation of damp proof and gas membranes. The clipping mechanism prevents rotation of the spacer when it is used on vertical formwork faces, making it ideal for use with permanent formwork systems.
Manufactured in accordance with BS7973-1 :2001
| Product Code | Cover (mm) | Bar Dia. (mm) | Pack Size (no) | Pallet Size (no) |
|---|---|---|---|---|
| FB25302 | 25 - 30 | 6-12 | 250 | 10000 |
| FB40502 | 40 - 50 | 6-12 | 200 | 10400 |
| FB65752 | 65 - 75 | 6-12 | 200 | 10000 |
| FB901002 | 90 - 100 | 6-12 | 100 | 6000 |
