TJEP ULTRA GRIP re-bar tier increases your efficiency significantly compared to the physically demanding, monotonous and
time-consuming work of manual tying.
The TJEP ULTRA GRIP re-bar tier can also reduce the risk of back and wrist health problems. The ergonomic re-bar tier not only improves working conditions, it is also an economic and reliable solution, which helps to finish the task far more effectively.
TJEP ULTRA GRIP is the third generation of re-bar tier from TJEP and is a further development of our popular XP re-bar tiers. The
know-how gained from previous generations has been incorporated into the new ULTRA GRIP series, which sets new standards in tying speed and quality.

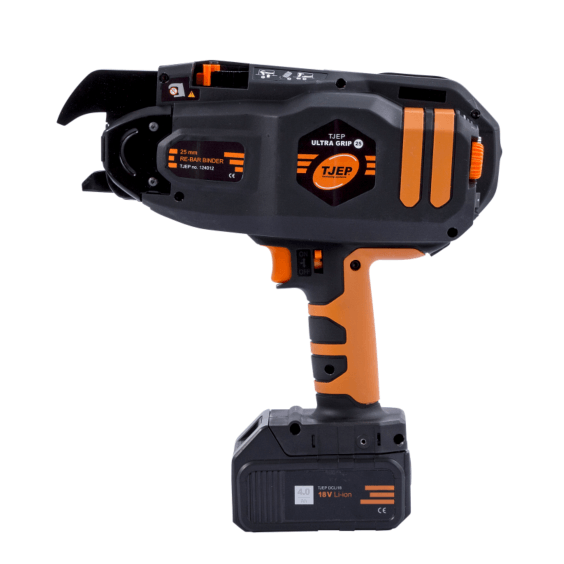

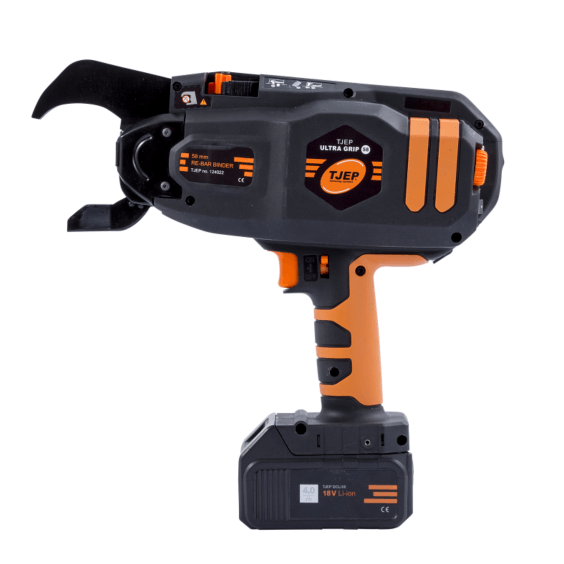

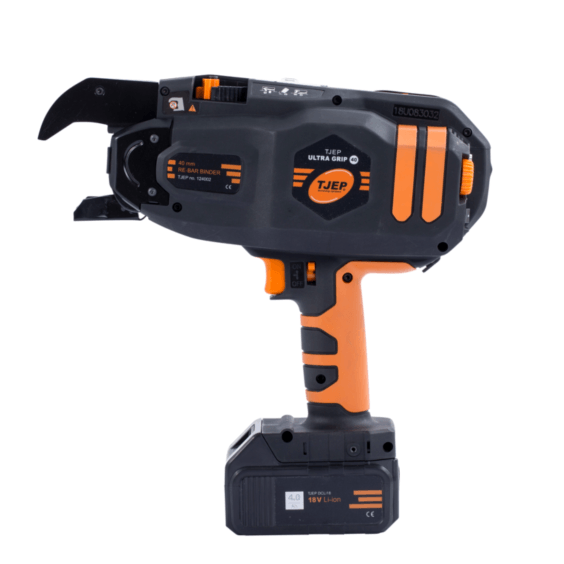

Product | TJEPUG25 | TJEPUG40 | TJEPUG58 |
---|---|---|---|
Combined Re-bar Size | 8 - 25mm | 12 - 40mm | 30 - 58mm |
Item no. | 124012 | 124002 | 124022 |
EAN no. | 5702551240120 | 5702551240021 | 5702551240229 |
Dimension | 281 x 109 x 300mm | 297 x 109 x 300 | 312 x 109 x 310mm |
Weight | 2.5kg | 2.6kg | 2.8kg |
Ties Per Coil | 160 - 225 | 120 - 160 | 90 - 120 |
Wraps Per Tie | 2 or 3 | 2 or 3 | 2 or 3 |
Wire Specification | Electro Galvanised | Electro Galvanised | Electro Galvanised |
Ties Per Charge | 5000 (with 3 wraps) | 4500 (with 3 wraps) | 4000 (with 3 wraps) |
Tie Speed | 0.6 seconds | 0.7 seconds | 0.8 seconds |
