Telescopic Spreader Beams
VDB Telescopic Spreader Beams
The VDB Telescopic Spreader Beams are a frequently used lifting device in the precast concrete industry. They are ideal for lifting loads that require two lifting points and offer equal weight distribution.
They are also designed with both central and peripheral lifting points to fulfil multiple roles as a lifting beam or as a spreader beam.
| Type | Extendable Length | Maximum SWL | Weight |
|---|---|---|---|
| SB-5-3T (Type 1) | 2440 to 3500mm | 5,000 to 3,000 Kg | 115 Kg |
| SB-8-5-T (Type1) | 2440 to 3500mm | 8,000 to 5,000 Kg | 160 Kg |

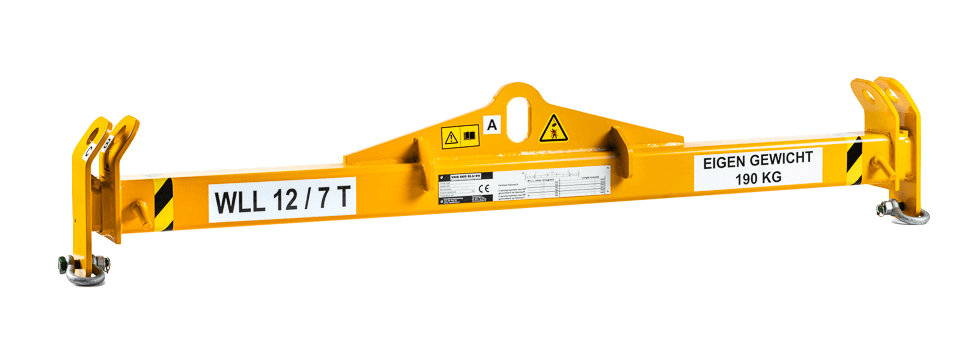

| SB-12-7T (Type 1) | 2440 to 3500mm | 12,000 to 7,000 Kg | 190 Kg |
| SB-15-8.5T (Type 1) | 2440 to 3500mm | 15,000 to 8,500 Kg | 250 Kg |

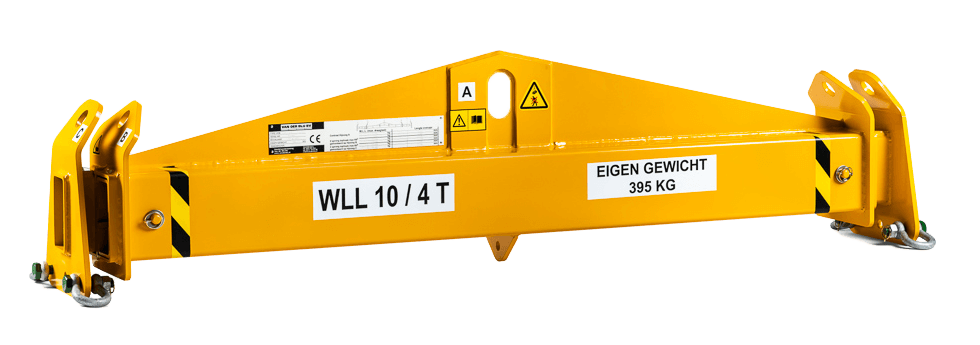

| SB-10-4T (Type 2) | 2500 to 6000mm | 10,000 to 4,000 Kg | 395 Kg |

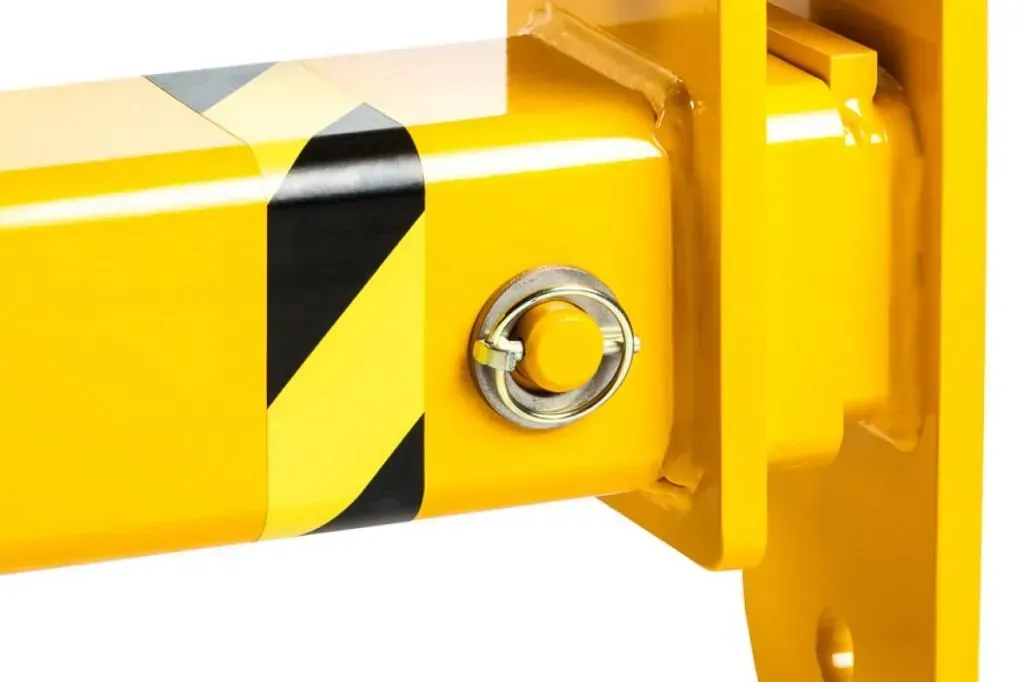

Easily Adjustable
The VDB telescopic spreader beams are easy to adjust using the locking pins. No special equipment needed due to their low weight.

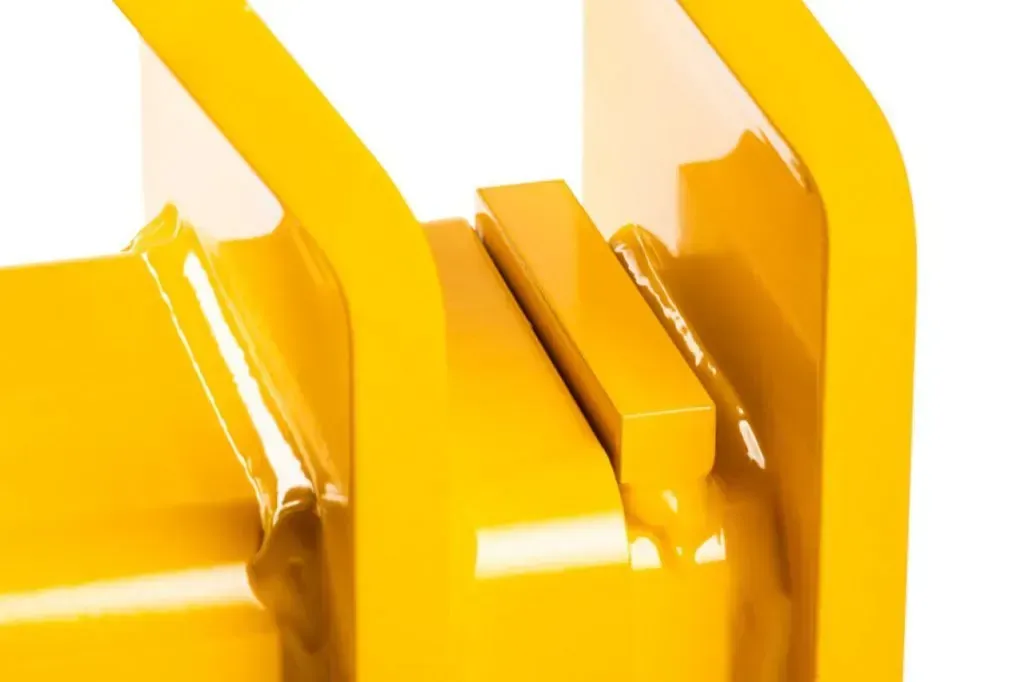

Safe Design
The VDB telescopic spreader beams are designed with safety in mind. All types are fitted with a "finger stop" in order to reduce the risk of crushing.
Widely Applicable

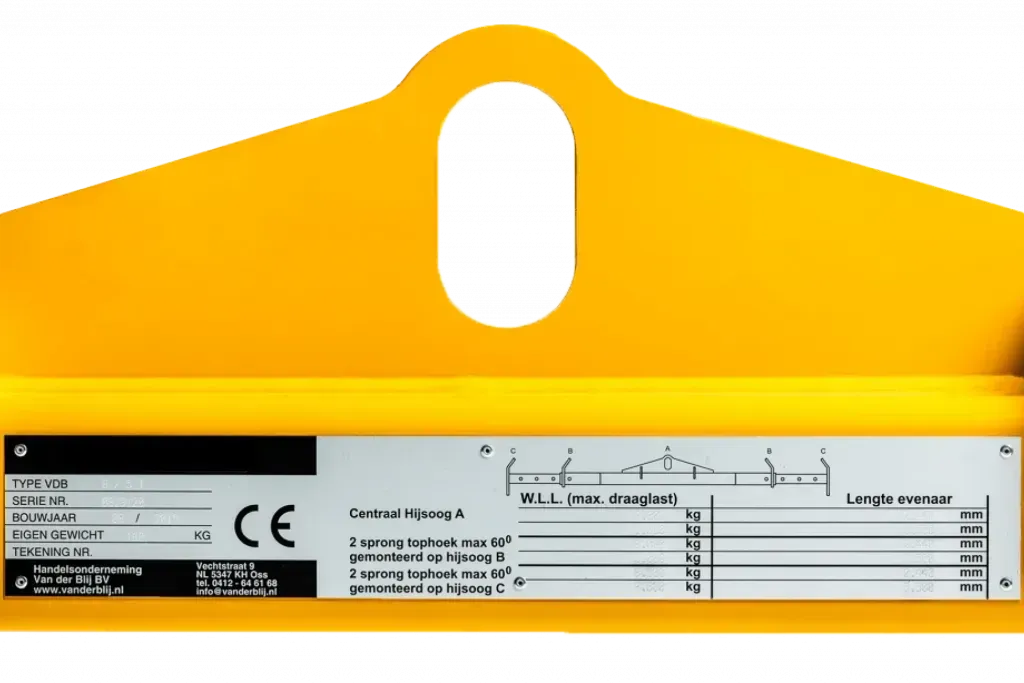

The VDB telescopic spreader beams are widely applicable due to the many extension options. The various positions are indicated on the type plate with the specified SWL.
According to Machinery Directive 2006/42/EC
In accordance with NEN-EN-13155
S355J2 structural steel
Delivery includes EKH certificate
High Quality
Delivery includes instructions for use
