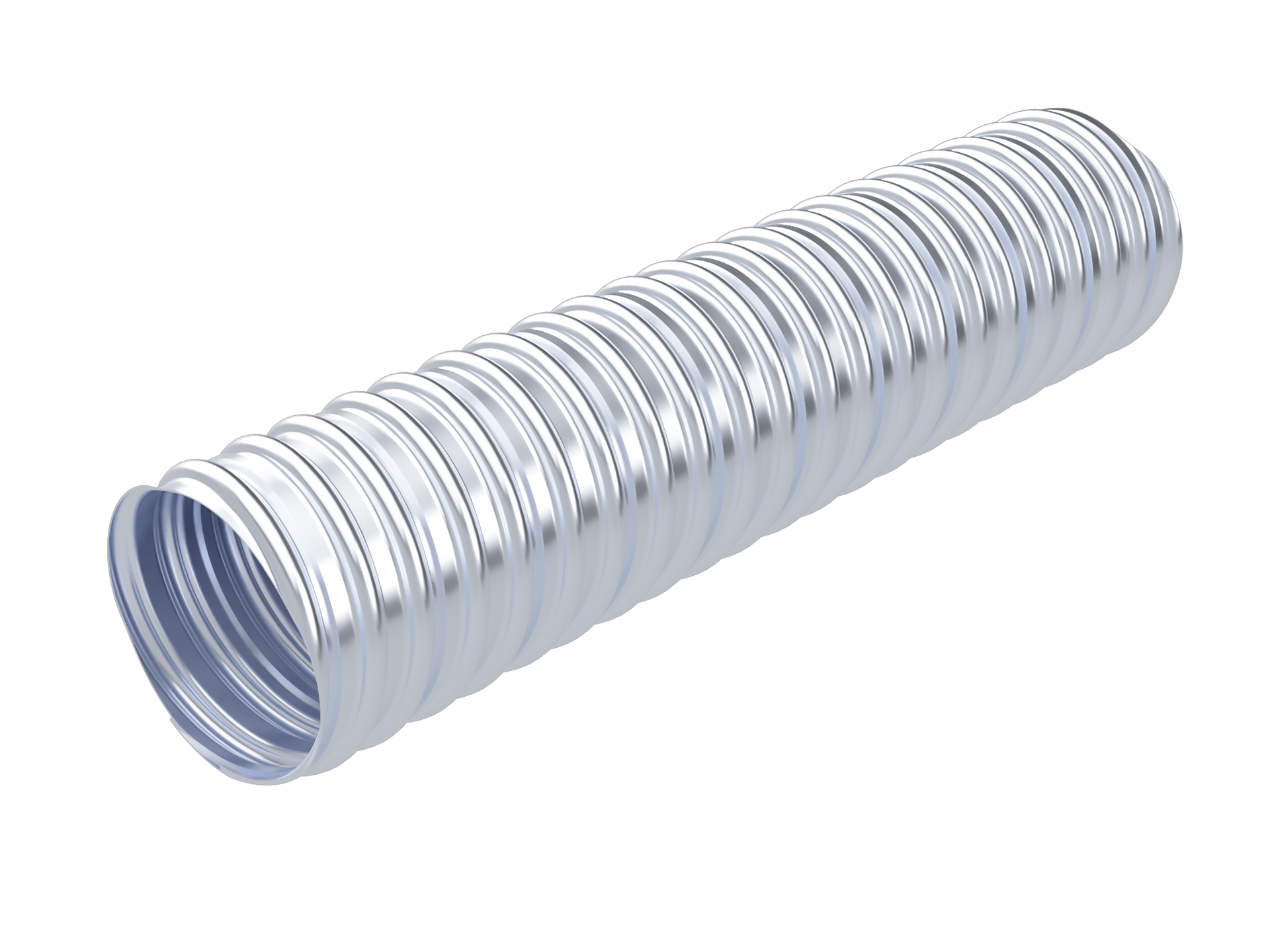

Spiral Void Formers are precisely manufactured, utilising the latest manufacturing techniques from cold rolled pre-galvanised steel strip, ensuring durability and longevity. They are ideal for extended outdoor storage without compromising the quality. If your project requires a specific thickness, we accommodate custom requests to meet your unique specifications.
Our void formers are conveniently stocked in 3-meter lengths as standard, providing flexibility in application. Additional convenience is provided with a cut-to-length service, minimising waste and tailoring the product to your site-specific needs.
✓ Stocked in 3mtr lengths.
✓ Any length available on request.
✓ Manufactured from galvanised steel, Zn coated 50-60 gsm. Tensile strength 315-430 MPa.
✓ Heavy Duty version available upon request.
✓ Manufacture in the UK.
Product Code | Internal Dia. (mm) | External Dia. (mm) | Rib Depth (mm) | Length (mm) |
---|---|---|---|---|
VF040.3000 | 40 | 47 | 3.5 | 3000 |
VF045.3000 | 45 | 52 | 3.5 | 3000 |
VF050.3000 | 50 | 57 | 3.5 | 3000 |
VF055.3000 | 55 | 62 | 3.5 | 3000 |
VF060.3000 | 60 | 67 | 3.5 | 3000 |
VF065.3000 | 65 | 72 | 3.5 | 3000 |
VF070.3000 | 70 | 77 | 3.5 | 3000 |
VF075.3000 | 75 | 82 | 3.5 | 3000 |
VF080.3000 | 80 | 87 | 3.5 | 3000 |
VF085.3000 | 85 | 92 | 3.5 | 3000 |
VF090.3000 | 90 | 97 | 3.5 | 3000 |
VF095.3000 | 95 | 102 | 3.5 | 3000 |
VF100.3000 | 100 | 107 | 3.5 | 3000 |
VF110.3000 | 110 | 117 | 3.5 | 3000 |
VF120.3000 | 120 | 127 | 3.5 | 3000 |
VF150.3000 | 150 | 157 | 3.5 | 3000 |
Data Sheet (Download)
Comming Soon (Download)
