Rubber Recess Former
Rubber Recess Former
Used to position Pin Anchors and form a recess for the clutch.
| Product Code | Load (kg) | Height (mm) | Width (mm) | Hole Dia. (mm) |
|---|---|---|---|---|
| LAPRF013 | 1300 | 32 | 66 | 10 |
| LAPRF025 | 2500 | 39 | 80 | 14 |
| LAPRF050 | 5000 | 48 | 100 | 20 |
| LAPRF075 | 7500 | 48 | 100 | 24 |
| LAPRF100 | 10000 | 61 | 128 | 28 |
| LAPRF150 | 15000 | 61 | 128 | 38 |
| LAPRF200 | 20000 | 80 | 170 | 40 |
| LAPRF320450 | 32000 - 45000 | 107 | 236 | 50 |
Associated Products
Associated Products
-

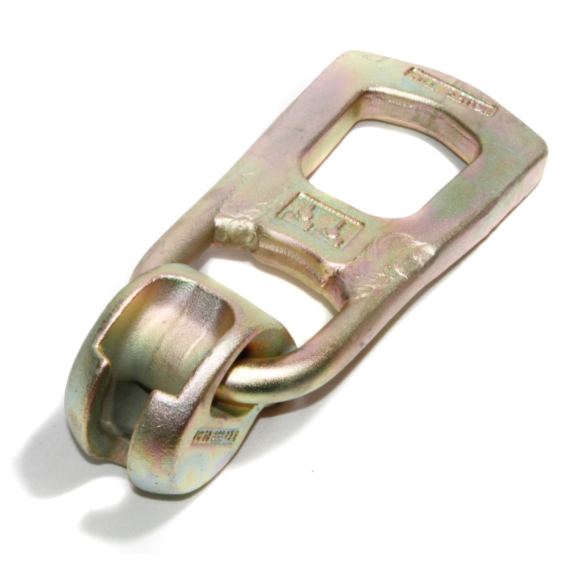

![Pin Anchor Ring Clutch]()
-
![Mounting Plate]()
ButtonMounting Plate
-
![Fixing Plate]()
Associated Products
Associated Products
-
![Pin Anchor Ring Clutch]()
-

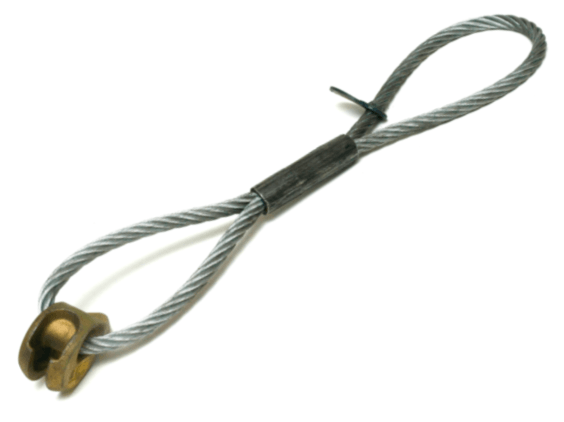

![Combination Pin Anchor Ring Clutch]()
ButtonCombination Pin Anchor Ring Clutch
-

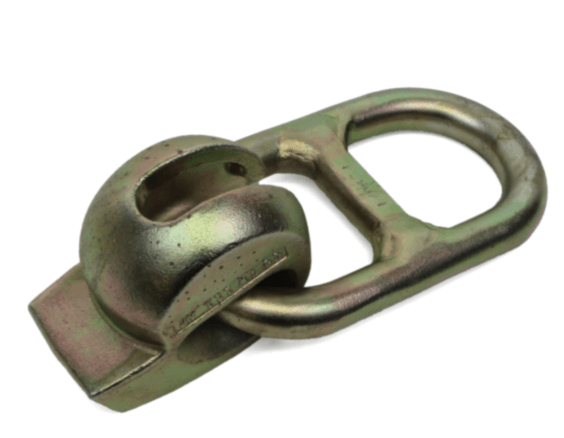

![Pin Anchor Ring Clutch Type 2]()
