Precast Wall Compression Profiles
Precast Wall Compression Profiles
Compression profile for precast panel construction, facades and walls. Highly compressible, with good recovery properties and easy to install.
| Product Code | Wall Slot Size (mm) | Width (mm) | Height (mm) | Movement (mm) | Roll Size (mtr) |
|---|---|---|---|---|---|
| PWCP08 | 8 | 16 | 20 | 3 (+2/-1) | 50 |
| PWCP10 | 10 | 18 | 20 | 5 (+3/-2) | 50 |
| PWCP15 | 15 | 25 | 25 | 5 (+3/-2) | 50 |
| PWCP20 | 20 | 34 | 35 | 5 (+3/-2) | 25 |
| PWCP30 | 30 | 42 | 40 | 5 (+3/-2) | 25 |
| PWCP40 | 40 | 63 | 60 | 7 (+4/-3) | 25 |
| PWCP45 | 45 | 73 | 65 | 7 (+4/-3) | 25 |
| PWCP50 | 50 | 83 | 70 | 9 (+5/-4) | 25 |
| PWCP100 | 100 | 120 | 80 | 60 (+10/-50) | 3 |
Associated Products
Associated Products
-

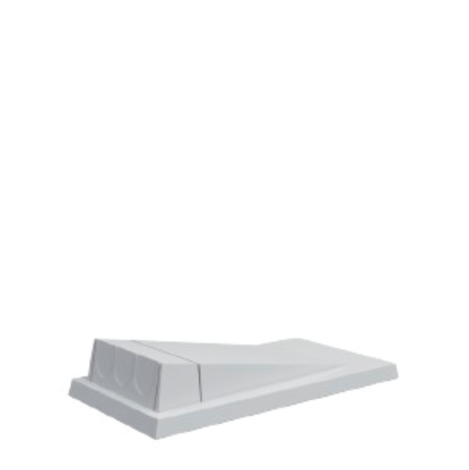

![Nevo-Connect Recess Unit]()
-

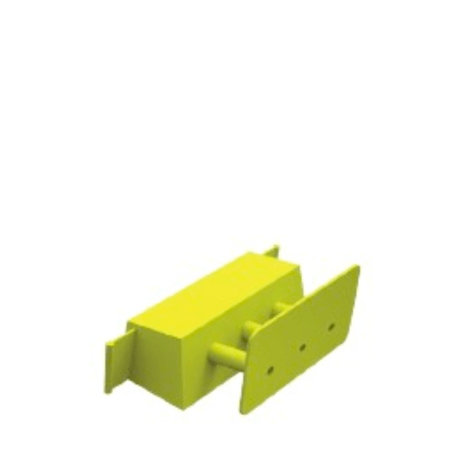

![Nevo-Connect Screw Guide]()
ButtonNevo-Connect Screw Guide
-

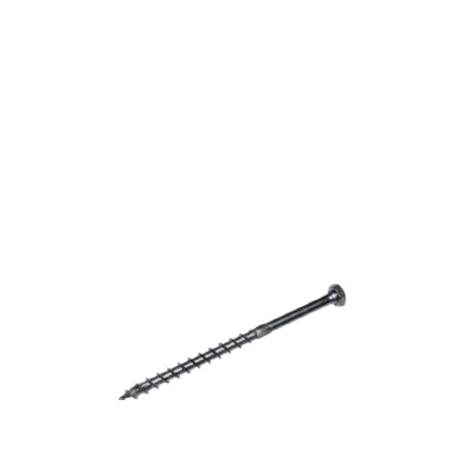

![Nevo-Connect Screw System]()
-

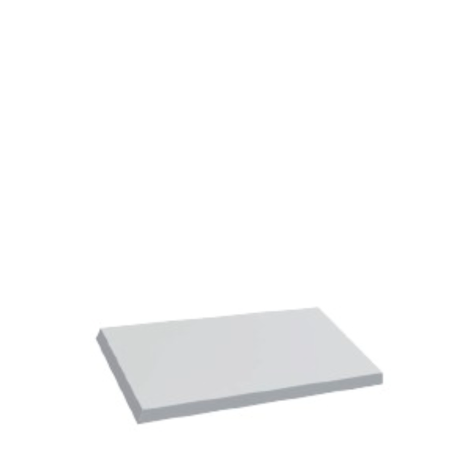

![Nevo-Connect Concrete Cover Cap]()
