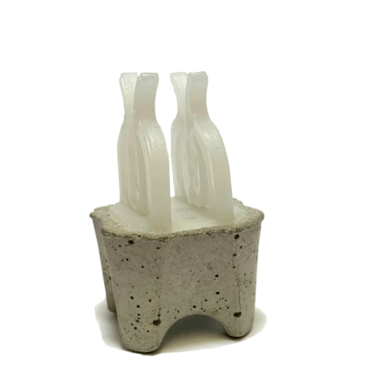

Heavy Duty Concrete Spacer Four Point with EA Plastic Clip
Heavy Duty Concrete Spacer Four Point
with EA Plastic Clip
Heavy duty concrete spacer with four point support for minimal contact with the formwork. Complete with our special design plastic clip to accept bar diameters from 16mm to 25mm.
Minimum Concrete Strength of 50N/mm2
Manufactured in accordance with BS7973-1 :2001
Approved according to DBV specification.
| Product Code | Cover (mm) | Bar Dia. (mm) | Pack Size (no) | Pallet Size (no) |
|---|---|---|---|---|
| CFPCHD25-EA | 25 | 16-25 | 430 | 17200 |
| CFPCHD30-EA | 30 | 16-25 | 320 | 12800 |
| CFPCHD35-EA | 35 | 16-25 | 250 | 10000 |
| CFPCHD40-EA | 40 | 16-25 | 200 | 8000 |
| CFPCHD45-EA | 45 | 16-25 | 175 | 7000 |
| CFPCHD50-EA | 50 | 16-25 | 150 | 6000 |
| CFPCHD55-EA | 55 | 16-25 | 130 | 5200 |
| CFPCHD60-EA | 60 | 16-25 | 115 | 4600 |
| CFPCHD65-EA | 65 | 16-25 | 100 | 4000 |
| CFPCHD70-EA | 70 | 16-25 | 90 | 3600 |
| CFPCHD75-EA | 75 | 16-25 | 80 | 3200 |
| CFPCHD80-EA | 80 | 16-25 | 75 | 3000 |
Alternatives
Alternatives
-
![]()
Standard Plastic Circles

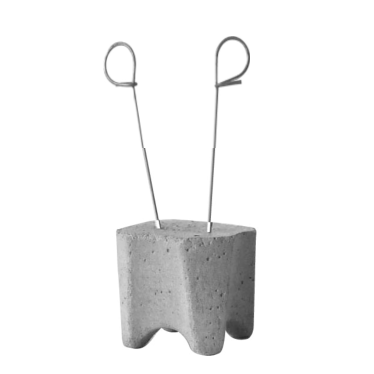

ButtonFour Point Support with Loop Ties
-
![]()
-
![]()
