Flat Plate Lifting Sockets
Flat Plate Lifting Sockets
Flat Plate Lifting Sockets are ideal for shallow precast concrete units. The height of these sockets allows them to be placed in the shallow dimension of slab and terrace units. These sockets must be used with additional reinforcement to transfer loads into the surrounding concrete.
| Product Code | Thread Dia. (Rd) | Length (mm) | SWL (kg) | Pack Size | Pallet Size |
|---|---|---|---|---|---|
| SLFPRD12 | 12 | 30 | 500 | 100 | 6000 |
| SLFPRD16 | 16 | 35 | 1200 | 50 | 6000 |
| SLFPRD20 | 20 | 47 | 2000 | 50 | 2000 |
| SLFPRD24 | 24 | 54 | 2500 | 40 | 1800 |
| SLFPRD30 | 30 | 72 | 4000 | 20 | 900 |
| SLFPRD36 | 36 | 84 | 6300 | 10 | 540 |
| SLFPRD42 | 42 | 98 | 8000 | 8 | 320 |
| SLFPRD52 | 52 | 117 | 12500 | 6 | 168 |
Also available in stainless steel. (Add SS to Product Code)
Associated Products
Associated Products
-
![TJEP UG Tying Machine]()

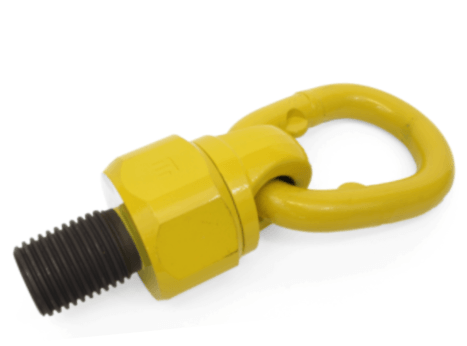

ButtonSwivel Lifting Eye
-
![Stainless Steel Tying Wire]()
-

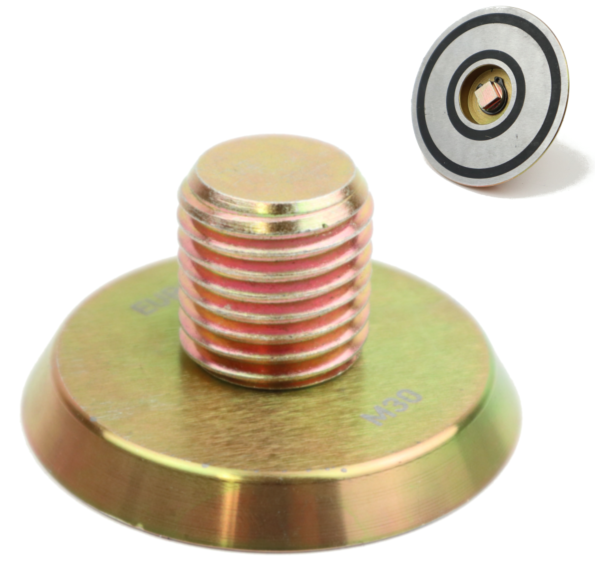

![Magnetic Disc Nailing Plate]()
-

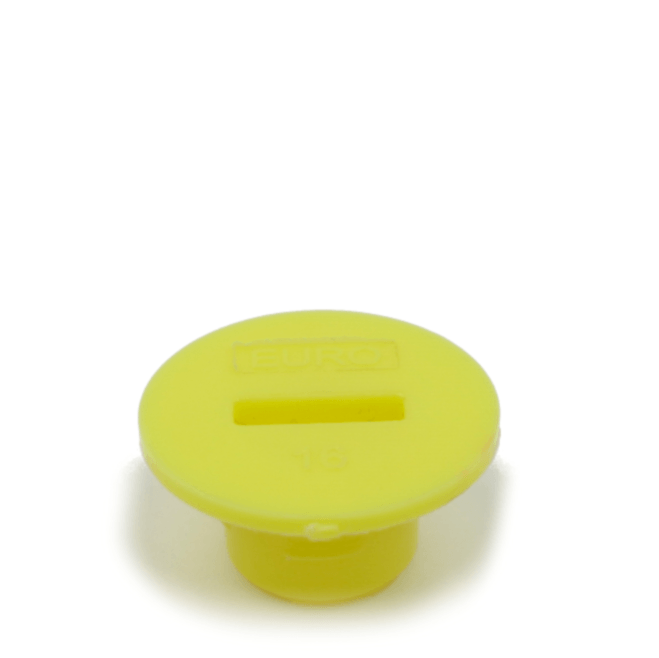

![Threaded Sealing Plug]()
