Concrete Triangular Concave Bar - 50N/mm2

Concrete Triangular Concave Bar 50N/mm2

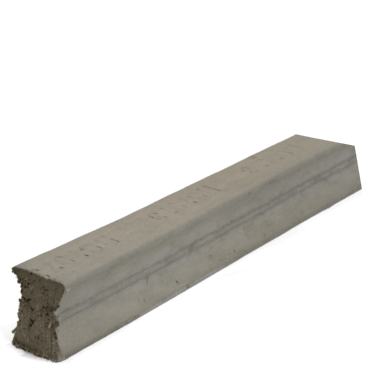

A continuous concrete spacer with a triangular concave profile. To provide excellent stability and
efficient use of material the base width is equal to the cover dimension throughout the range. The wide smooth base distributes loads over a large area reducing the possibility of puncture damage when installing reinforcement directly above moisture and gas membranes.
Manufactured in accordance with BS7973-1 :2001.
Product Code Cover (mm) Length (mtr) Pallet Size (no) Pallet Weight (kg)
CBTC30 30 0.9 1100 1000
CBTC35 35 0.9 850 1000
CBTC40 40 0.9 650 1000
CBTC50 50 0.9 550 1050
CBTC60 60 0.9 400 1000
CBTC75 75 0.9 300 1000
CBTC100 100 0.9 220 1000
  • Data Sheet

    Data Sheet (Download)

  • BS7973-1 :2001 Certificate

    BS7973-1 :2001 Certificate (Download)
