Clayfill

Clayfill

Protecting structures against clay heave and ground movement

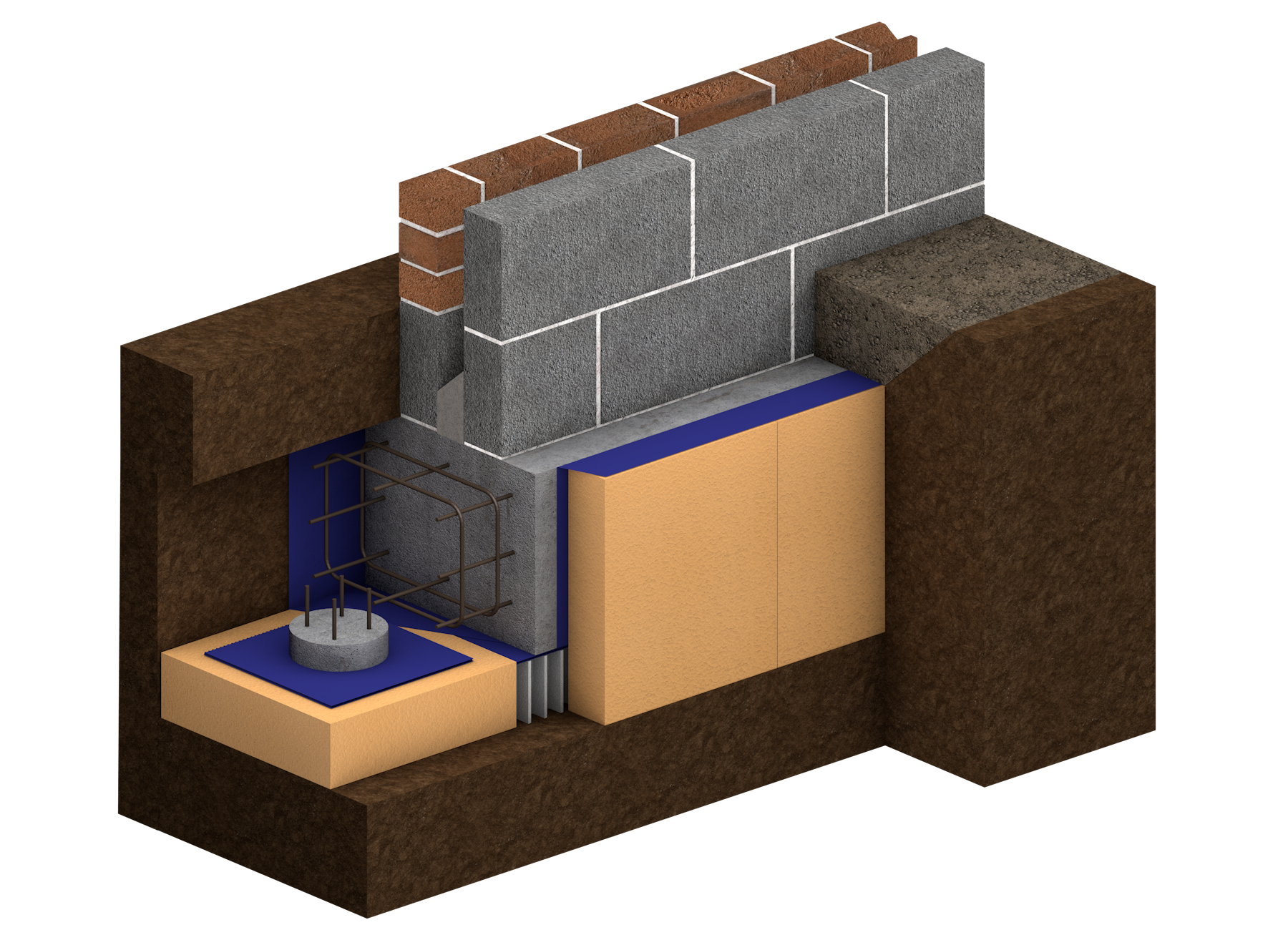

Clayfill is a low density Expanded Polystyrene (EPS) compressible fill that helps reduce any forces exerted onto deep fill foundations, concrete ground beams and piled foundations. These pressures can be caused by many things, the expansion of clay soils, excess water or overgrowth of tree roots. Whatever the reason for the development of these forces Clayfill can help absorb the pressure exerted onto the foundations

Product Code Description Length (mm) Width (mm) Thickness (mm)
CF050 Clayfill Board 2400 1200 50
CF075 Clayfill Board 2400 1200 75
CF100 Clayfill Board 2400 1200 100
CF150 Clayfill Board 2400 1200 150
CF200 Clayfill Board 2400 1200 200
CFPC Clayfill Pile Colar ≤ 1200 ≤ 200 ≤ 600

BENEFITS OF EURO CLAYFILL

The technical and cost benefits of Clayfill make it the complete solution for void creation.

  • Reduces the effects of clay heave for the life
  • of the foundation
  • BBA Certified 02/3975
  • Resistant to moisture and rot
  • Maximum lateral pressures of up to 40kN.m-2
  • Pre-cut pile collars to suit application
  • No reduction in performance over time
  • Lightweight, quick & easy to install
  • Minimal water absorption & permeability
  • 100% recyclable
  • BRE Green Guide Rating of A+
  • Data Sheet

    Clayfill Data Sheet (Download)
