Bolt Anchor Fixing Socket with Plate
Bolt Anchor Sockets with Plate
The fixing and positioning bolt anchor is manufactured from a threaded socket, locked on to a standard screw and anchor plate.
| Product Code | Thread Dia. (M) | Length (mm) | Plate Size (mm) | Load (kN) | Pack Size | Pallet Size |
|---|---|---|---|---|---|---|
| SFBAP1255 | 12 | 55 | 40 x 40 | 8.00 | 100 | 6000 |
| SFBAP1675 | 16 | 75 | 50 x 50 | 14.00 | 50 | 2400 |
| SFBAP2090 | 20 | 90 | 60 x 60 | 17.00 | 30 | 1800 |
| SFBAP24110 | 24 | 110 | 80 x 80 | 20.00 | 10 | 600 |
| SFBAP30140 | 30 | 140 | 100 x 100 | 30.00 | 10 | 360 |
Also available in stainless steel. (Add SS to Product Code)
Associated Products
Associated Products
-
![Hex Set Screw]()
ButtonHex Set Screw
-
![Stainless Steel Tying Wire]()
-

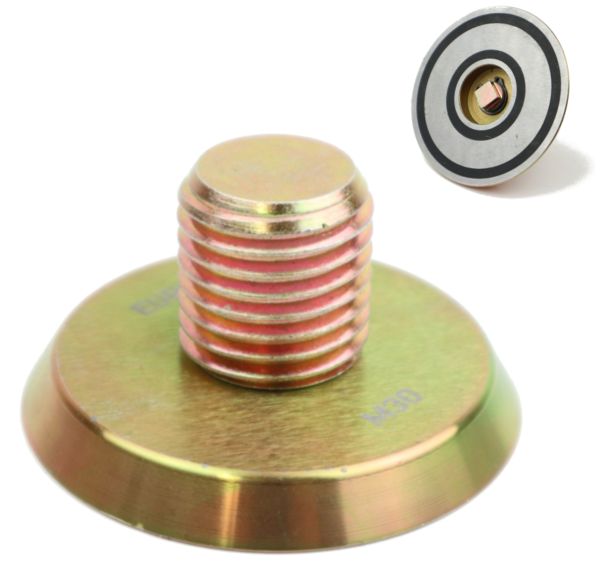

![Magnetic Disc Nailing Plate]()
-
